How to View the DDM Information of Optical Transceivers?

Introduction:
Optical transceivers play a vital role in modern data communication networks, facilitating the transmission of data over fiber optic cables. To monitor and manage the performance of these transceivers effectively, it is important to access and interpret the Digital Diagnostic Monitoring (DDM) information they provide. DDM enables network administrators to gain valuable insights into the operating parameters of optical transceivers, such as temperature, voltage, optical power, and more. In this blog, we will explore how to view the DDM information of optical transceivers, empowering you with the knowledge to monitor and optimize your network infrastructure.

1. Understanding Digital Diagnostic Monitoring (DDM):
Digital Diagnostic Monitoring (DDM), also known as Digital Optical Monitoring (DOM), is a feature found in most modern optical transceivers. It provides real-time information about the performance and health of the transceiver. By accessing DDM data, network administrators can monitor various parameters, including:

• Optical Power: DDM allows you to monitor the received and transmitted optical power levels, ensuring they are within the acceptable range. Deviations from the optimal power range can indicate issues with the fiber link or transceiver performance.
• Temperature: Transceiver temperature monitoring is crucial to prevent overheating, which can degrade performance or even damage the transceiver. DDM provides temperature readings, enabling proactive measures to maintain optimal operating conditions.
• Voltage and Current: DDM information includes voltage and current measurements, which help identify power-related issues or irregularities that may impact transceiver performance.
• Laser Bias Current: This parameter indicates the current flowing through the laser diode. Monitoring laser bias current helps ensure the stability and reliability of the transceiver.

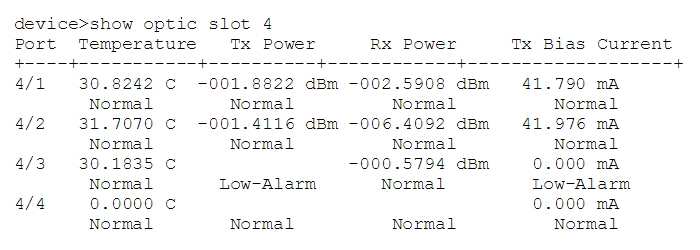

Show optic slot command result. (source: Brocade)

2. Accessing DDM Information:
The process of viewing DDM information varies depending on the network equipment and management tools you use. However, here is a general overview of how to access DDM data:

• Supported Platforms: Check if your network equipment, such as switches or routers, supports DDM functionality. Most modern devices include this feature, but it's essential to verify compatibility.
• Management Interface: Access the management interface of the network device that hosts the transceiver. This can be a command-line interface (CLI), web-based GUI, or a dedicated network management system (NMS).
• Identify the Transceiver: Locate the specific port or interface connected to the transceiver whose DDM information you want to access. Note the port number or interface identifier for reference.
• Retrieve DDM Data: Once you have identified the transceiver, navigate to the relevant section or module within the management interface to access the DDM information. Look for options like "Optical Diagnostics," "DDM Monitoring," or similar labels.
• Interpret the Data: The DDM information is usually presented in a tabular format, displaying various parameters such as optical power, temperature, and current readings. Review the values and compare them to the acceptable ranges specified by the transceiver manufacturer.

3. Monitoring and Troubleshooting:
Regularly monitoring the DDM information of optical transceivers is crucial for maintaining a healthy network infrastructure. By establishing baselines and setting thresholds for each parameter, you can configure alerts or notifications when values exceed predefined limits. This proactive approach enables timely troubleshooting and intervention to prevent potential network issues.

• Alarms and Notifications: Configure your network management system to send alarms or notifications when DDM values breach predetermined thresholds. This ensures prompt action can be taken to rectify problems.
• b. Historical Analysis: Utilize the historical DDM data to identify trends or patterns that may indicate impending issues. Analyzing this information helps predict failures, plan maintenance activities, and optimize network performance.
• Vendor-specific Tools: Some transceiver manufacturers offer specialized software or tools to monitor DDM information. These tools often provide more detailed insights into transceiver performance and can be useful for advanced troubleshooting.

Conclusion:
Accessing and interpreting the Digital Diagnostic Monitoring (DDM) information of optical transceivers is vital for network administrators to monitor and maintain the health of their network infrastructure. By leveraging DDM data, administrators can proactively identify and resolve issues related to optical power, temperature, voltage, and other parameters. Regular monitoring, setting thresholds, and employing appropriate management tools and techniques allow for optimal network performance, reduced downtime, and improved overall reliability.

Remember, each network equipment manufacturer may have specific instructions for accessing DDM information, so always refer to the product documentation or seek support from the vendor when needed. With the ability to view and analyze DDM information, you gain valuable insights into your network's performance, ensuring its smooth operation and enhancing your ability to deliver reliable and efficient data communication.
